Branch Mapping

To access the Branch Name Mapping Settings page, click on Settings > Branch Mapping.

Here you can configure a list of IP subnets utilized on your network and map them to names of geographical locations, buildings or organizational branches. On the basis of this configuration, ControlUp assigns a source branch name to every user session and populates the Branch Name column in the Sessions view with this branch name. For best practice, we recommend you configure up to a maximum of 20,000 branch mappings in your network.

For example, in an organization in which the New York office uses the 10.1.0.0/16 subnet and the Chicago office uses the 10.2.0.0/16 subnet, the mapping table should be configured to map those subnet addresses to the branch names. As a result, the Branch Name column will be populated with the value of “New York” for all user sessions established from client IP addresses in the 10.1.0.0/16 range, and with the value of “Chicago” for the 10.2.0.0/16 range.

Subnets and Sites

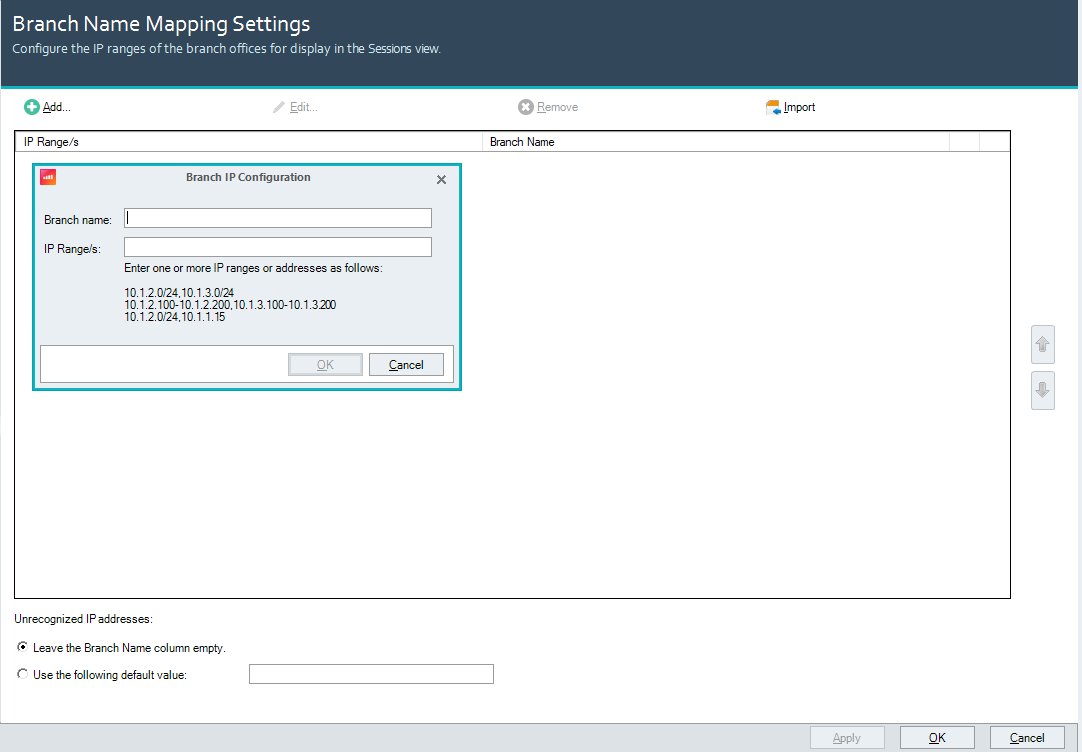

You can click Add to manually add a list of subnets and branch names, or click Import to import a list using a CSV file.

Here’s an example content of a supported CSV file:

10.1.0.0/16,Chicago
10.2.0.0/16,New York
192.168.1.0/24,London
172.16.0.0/12,Amsterdam
10.1.3.100-10.1.3.200,Servers Subnet
10.1.4.111,Test Workstation

To ensure a successful import, your CSV file must follow a specific format that matches the structure exported by Active Directory.

Required CSV Format:

• Column 1: Subnet/IP (e.g., 10.1.0.0/16)

• Column 2: Branch/Site Name (e.g., Chicago)

When exporting from Active Directory Sites and Services, the default output uses the headers Name and Site, which aligns with ControlUp’s requirements. Note that the AD Name column contains the subnet, not a friendly name. Don’t reorder these columns to Site,Name, since placing the branch name in the first column will cause the import to fail.

Export CSV File

If your Active Directory is already organized by subnets and sites, you can export that data as a CSV file from Active Directory Sites and Services and import it directly into ControlUp.

To export a CSV file, perform the following steps:

1. From a Windows Server or PC, open Active Directory Sites and Services.

2. In the tree view, expand the Sites container.

3. Right-click the Subnets container and click Export List…

4. Save the file as “Text (Comma Delimited) (*.csv)”.

5. From the Real-Time DX Console, click Settings > Branch Mapping> Import.

6. Browse to the file exported in step 4 above.

If the client IP address doesn’t belong to any of the subnets configured in the mapping table, the Branch Name column can be left empty or populated with a custom default value you provide. You can configure this setting under the Unrecognized IP addresses area.
